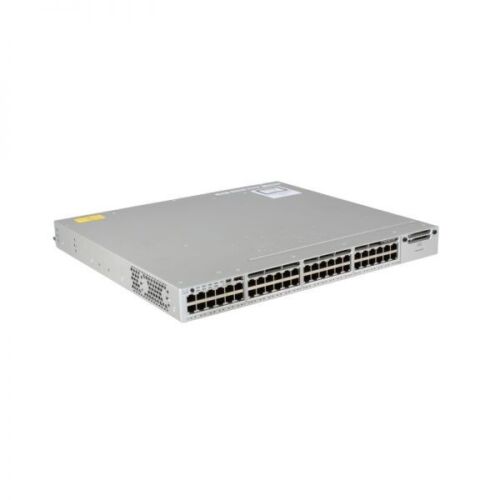

Cisco Catalyst WS-C3850-48F-S - 48 Port Gigabit Stackable POE Switch

Kryptografické funkce: Ano
Verze IOSu: 03.03.03SE
Typ rozhraní do Ethernetu: Gigabit Ethernet
Ethernet / LAN připojení: Ano
Kompatibilní Kabeláž: 10/100/1000BASE-T(X)
Přenosová rychlost Ethernet LAN: 10,100,1000 Mbit/s
Napojení na sever Syslog: Ano
Instalace do Racku: Ano, velikost 1U
Konfigurace přes konzoli CLI: Ano, přes RS-232 rollover kabel
DHCP server: Ano
DHCP klient: Ano
Přepínač na vrstvách RM ISO/OSI: L2/L3, Multilayer Switch
Podpora VLAN: Ano
Definice IP adres na privátních VLANách: Ano

Detailnější informace

Cisco IOS Software, IOS-XE Software, Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 03.03.03SE RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2014 by Cisco Systems, Inc.
Compiled Sun 27-Apr-14 18:33 by prod_rel_team

Cisco IOS-XE software, Copyright (c) 2005-2014 by cisco Systems, Inc.
All rights reserved.  Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0.  The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY.  You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0.
(http://www.gnu.org/licenses/gpl-2.0.html) For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.

ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 1.2, RELEASE SOFTWARE (P)

Switch#sh ver
Cisco IOS Software, IOS-XE Software, Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 03.03.03SE RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2014 by Cisco Systems, Inc.
Compiled Sun 27-Apr-14 18:33 by prod_rel_team

Cisco IOS-XE software, Copyright (c) 2005-2014 by cisco Systems, Inc.
All rights reserved.  Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0.  The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY.  You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0.
(http://www.gnu.org/licenses/gpl-2.0.html) For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.

ROM: IOS-XE ROMMON
BOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 1.2, RELEASE SOFTWARE (P)

Switch uptime is 4 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by reload
System image file is "flash:cat3k_caa-universalk9.SPA.03.03.03.SE.150-1.EZ3.conf"
Last reload reason: reload

This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to
export@cisco.com.

License Level: Ipbase
License Type: Permanent
Next reload license Level: Ipbase

cisco WS-C3850-48P (MIPS) processor with 4194304K bytes of physical memory.
Processor board ID FCW1851C0KT
1 Virtual Ethernet interface
52 Gigabit Ethernet interfaces
4 Ten Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
250456K bytes of Crash Files at crashinfo:.
1609272K bytes of Flash at flash:.
0K bytes of Dummy USB Flash at usbflash0:.
0K bytes of  at webui:.

Base Ethernet MAC Address          : c4:72:95:6e:f4:80
Motherboard Assembly Number        : 73-14442-10
Motherboard Serial Number          : XXXXXXX
Model Revision Number              : S0
Motherboard Revision Number        : A0
Model Number                       : WS-C3850-48P
System Serial Number               : XXXXXXX


Switch Ports Model              SW Version        SW Image              Mode
------ ----- -----              ----------        ----------            ----
*    1 56    WS-C3850-48P       03.03.03SE        cat3k_caa-universalk9 INSTALL


Configuration register is 0x102


Interface              IP-Address      OK? Method Status                Protocol
Vlan1                  unassigned      YES unset  administratively down down
GigabitEthernet0/0     unassigned      YES unset  down                  down
GigabitEthernet1/0/1   unassigned      YES unset  down                  down
GigabitEthernet1/0/2   unassigned      YES unset  down                  down
GigabitEthernet1/0/3   unassigned      YES unset  down                  down
GigabitEthernet1/0/4   unassigned      YES unset  down                  down
GigabitEthernet1/0/5   unassigned      YES unset  down                  down
GigabitEthernet1/0/6   unassigned      YES unset  down                  down
GigabitEthernet1/0/7   unassigned      YES unset  down                  down
GigabitEthernet1/0/8   unassigned      YES unset  down                  down
GigabitEthernet1/0/9   unassigned      YES unset  down                  down
GigabitEthernet1/0/10  unassigned      YES unset  down                  down
GigabitEthernet1/0/11  unassigned      YES unset  down                  down
GigabitEthernet1/0/12  unassigned      YES unset  down                  down
GigabitEthernet1/0/13  unassigned      YES unset  down                  down
GigabitEthernet1/0/14  unassigned      YES unset  down                  down
GigabitEthernet1/0/15  unassigned      YES unset  down                  down
GigabitEthernet1/0/16  unassigned      YES unset  down                  down
GigabitEthernet1/0/17  unassigned      YES unset  down                  down
GigabitEthernet1/0/18  unassigned      YES unset  down                  down
GigabitEthernet1/0/19  unassigned      YES unset  down                  down
GigabitEthernet1/0/20  unassigned      YES unset  down                  down
GigabitEthernet1/0/21  unassigned      YES unset  down                  down
GigabitEthernet1/0/22  unassigned      YES unset  down                  down
GigabitEthernet1/0/23  unassigned      YES unset  down                  down
GigabitEthernet1/0/24  unassigned      YES unset  down                  down
GigabitEthernet1/0/25  unassigned      YES unset  down                  down
GigabitEthernet1/0/26  unassigned      YES unset  down                  down
GigabitEthernet1/0/27  unassigned      YES unset  down                  down
GigabitEthernet1/0/28  unassigned      YES unset  down                  down
GigabitEthernet1/0/29  unassigned      YES unset  down                  down
GigabitEthernet1/0/30  unassigned      YES unset  down                  down
GigabitEthernet1/0/31  unassigned      YES unset  down                  down
GigabitEthernet1/0/32  unassigned      YES unset  down                  down
GigabitEthernet1/0/33  unassigned      YES unset  down                  down
GigabitEthernet1/0/34  unassigned      YES unset  down                  down
GigabitEthernet1/0/35  unassigned      YES unset  down                  down
GigabitEthernet1/0/36  unassigned      YES unset  down                  down
GigabitEthernet1/0/37  unassigned      YES unset  down                  down
GigabitEthernet1/0/38  unassigned      YES unset  down                  down
GigabitEthernet1/0/39  unassigned      YES unset  down                  down
GigabitEthernet1/0/40  unassigned      YES unset  down                  down
GigabitEthernet1/0/41  unassigned      YES unset  down                  down
GigabitEthernet1/0/42  unassigned      YES unset  down                  down
GigabitEthernet1/0/43  unassigned      YES unset  down                  down
GigabitEthernet1/0/44  unassigned      YES unset  down                  down
GigabitEthernet1/0/45  unassigned      YES unset  down                  down
GigabitEthernet1/0/46  unassigned      YES unset  down                  down
GigabitEthernet1/0/47  unassigned      YES unset  down                  down
GigabitEthernet1/0/48  unassigned      YES unset  down                  down
GigabitEthernet1/1/1   unassigned      YES unset  down                  down
GigabitEthernet1/1/2   unassigned      YES unset  down                  down
GigabitEthernet1/1/3   unassigned      YES unset  down                  down
GigabitEthernet1/1/4   unassigned      YES unset  down                  down
Te1/1/1                unassigned      YES unset  down                  down
Te1/1/2                unassigned      YES unset  down                  down
Te1/1/3                unassigned      YES unset  down                  down
Te1/1/4                unassigned      YES unset  down                  down



  right-to-use  Displays all the RTU licenses.


 License name   Type     Count   Period left
----------------------------------------------------------
 1      ipbase       permanent     N/A   Lifetime
 1      apcount      adder         20    Lifetime

License Level on Reboot: ipbase



Switch#sh inv
NAME: "c3xxx Stack", DESCR: "c3xxx Stack"
PID: WS-C3850-48P      , VID: S0   , SN: XXXXXXX

NAME: "Switch 1", DESCR: "WS-C3850-48P"
PID: WS-C3850-48P      , VID: S0   , SN: XXXXXXX

NAME: "Switch 1 - Power Supply B", DESCR: "Switch 1 - Power Supply B"
PID: PWR-C1-1100WAC    , VID: V01  , SN: XXXXXXX
